Double Unit Options
Click floor plan to explore in 3D
The North Bedroom option features south facing living, dining, and kitchen spaces for sunlight access and a bedroom to the north with a walk-in closet, 3/4 bathroom and laundry.
Complimentary Floor Plan Pairings
The West Bedroom option features living, dining, and kitchen spaces adjacent to a cantilevered bedroom with a walk-in closet, 3/4 bathroom, laundry, and a balcony.
The Cantilevered Bedroom option features living, dining, and kitchen spaces adjacent to a cantilevered bedroom with a walk-in closet, 3/4 bathroom, laundry, and a balcony.
A compact, efficient ADU organized for one‑ or two‑person occupancy. The layout prioritizes sunlight, efficiency, and storage while keeping living areas public and the bedroom private.

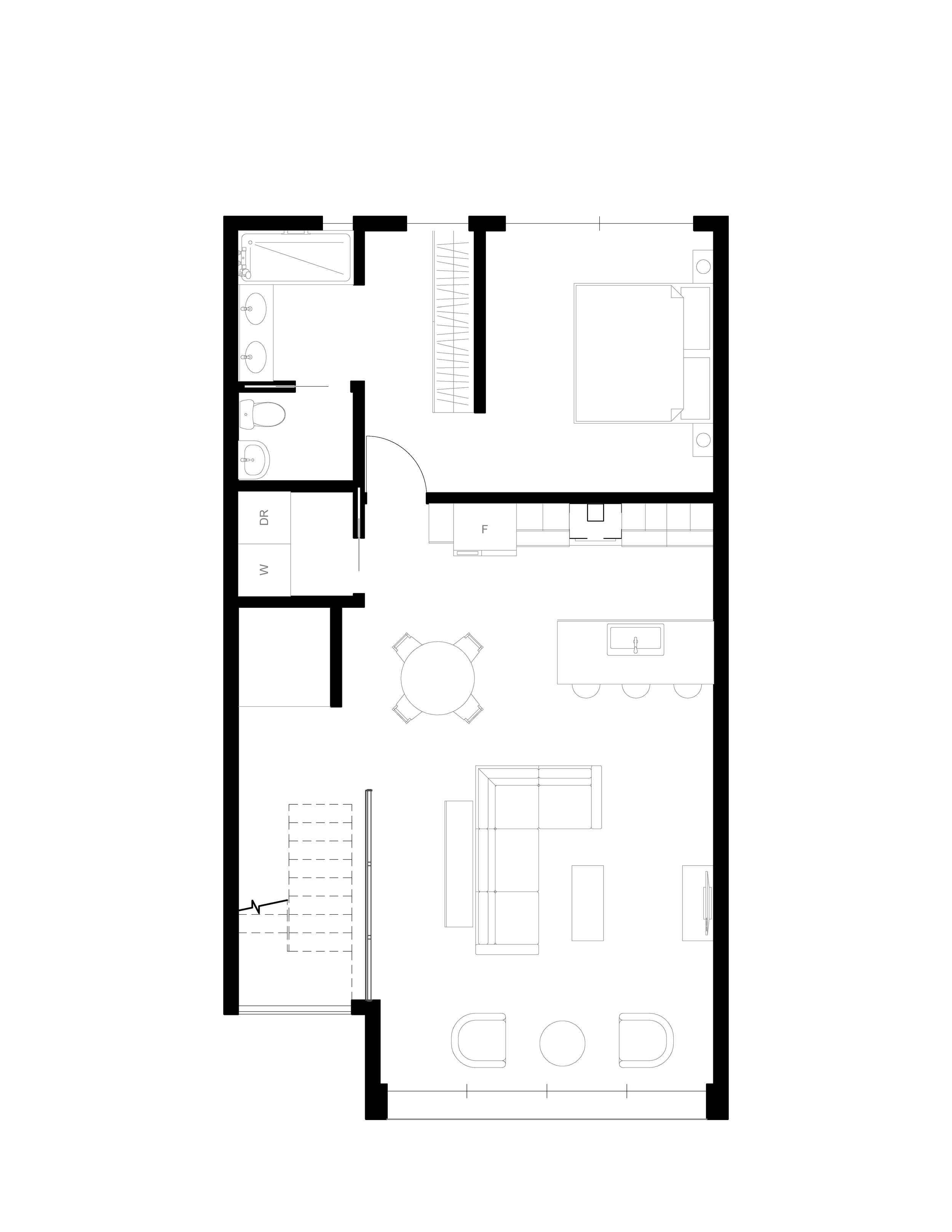

Option 1 - North Bedroom
North Bedroom
The North Bedroom option features south facing living, dining, and kitchen spaces for sunlight access and a bedroom to the north with a walk-in closet, 3/4 bathroom and laundry.
Legend:
1 - Living 13-0 x 17-6
2 - Lounge 11-0 x 14-0
3 - Kitchen 11-0 x 13-6
4 - Dining 16-6 x 10-0
5 - Half Bathroom 4-6 x 4-6
6 - Exterior Balcony
7 - Stair Hall
8 - Elevator

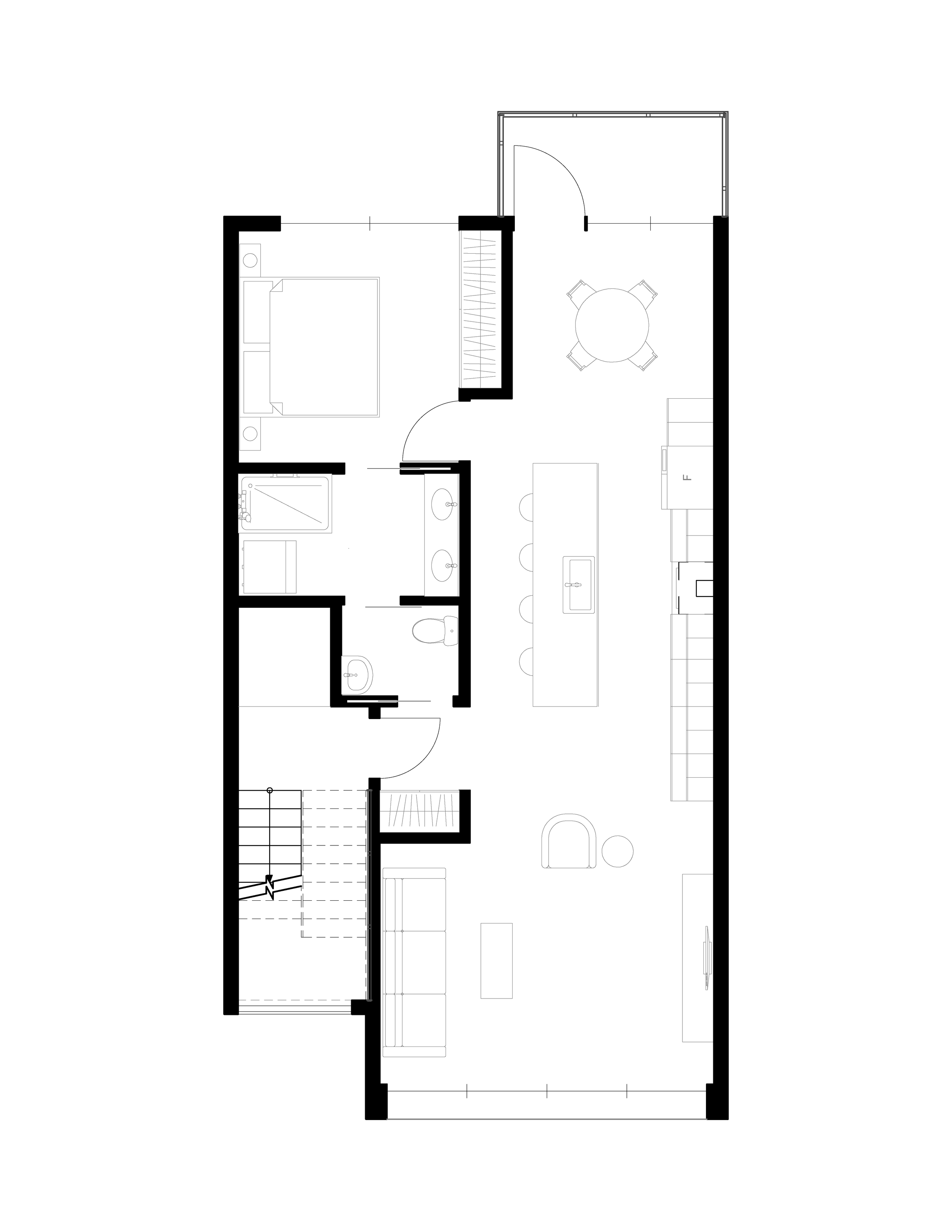

Option 2 - West Bedroom
North Bedroom
The West Bedroom option features living, dining, and kitchen spaces that stretch north to south to maximize views. This layout also includes a bedroom with a 3/4 bathroom and in-unit washer and dryer.
Legend:
1 - Living 13-0 x 17-6
2 - Lounge 11-0 x 14-0
3 - Kitchen 11-0 x 13-6
4 - Dining 16-6 x 10-0
5 - Half Bathroom 4-6 x 4-6
6 - Exterior Balcony
7 - Stair Hall
8 - Elevator
Option 3 - West Bedroom

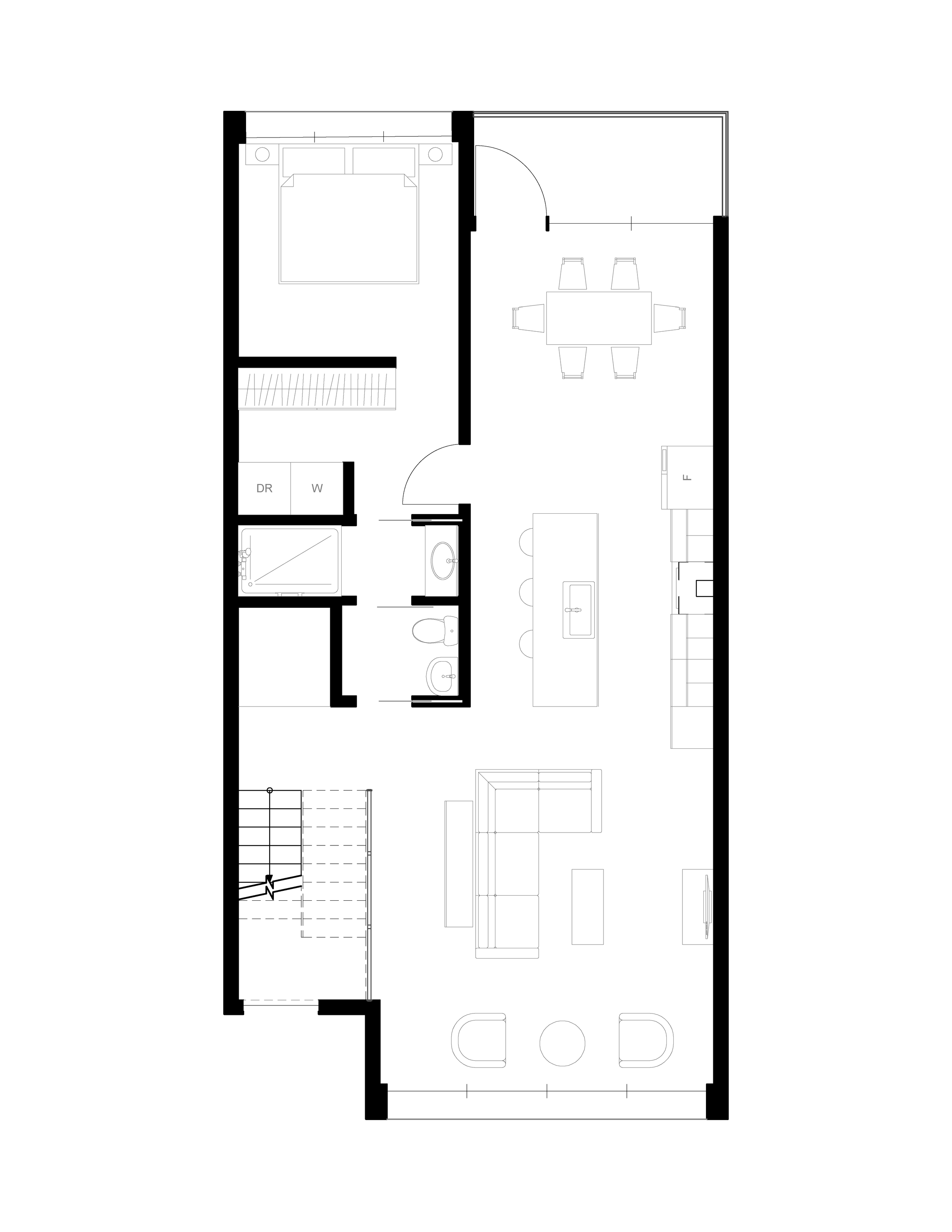

Cantilevered Bedroom
The Cantilevered Bedroom option features living, dining, and kitchen spaces that stretch north to south to maximize views. This layout also includes a bedroom with a walk-in closet, 3/4 bathroom, and in-unit washer and dryer.
Legend:
1 - Living 13-0 x 17-6
2 - Lounge 11-0 x 14-0
3 - Kitchen 11-0 x 13-6
4 - Dining 16-6 x 10-0
5 - Half Bathroom 4-6 x 4-6
6 - Exterior Balcony
7 - Stair Hall
8 - Elevator

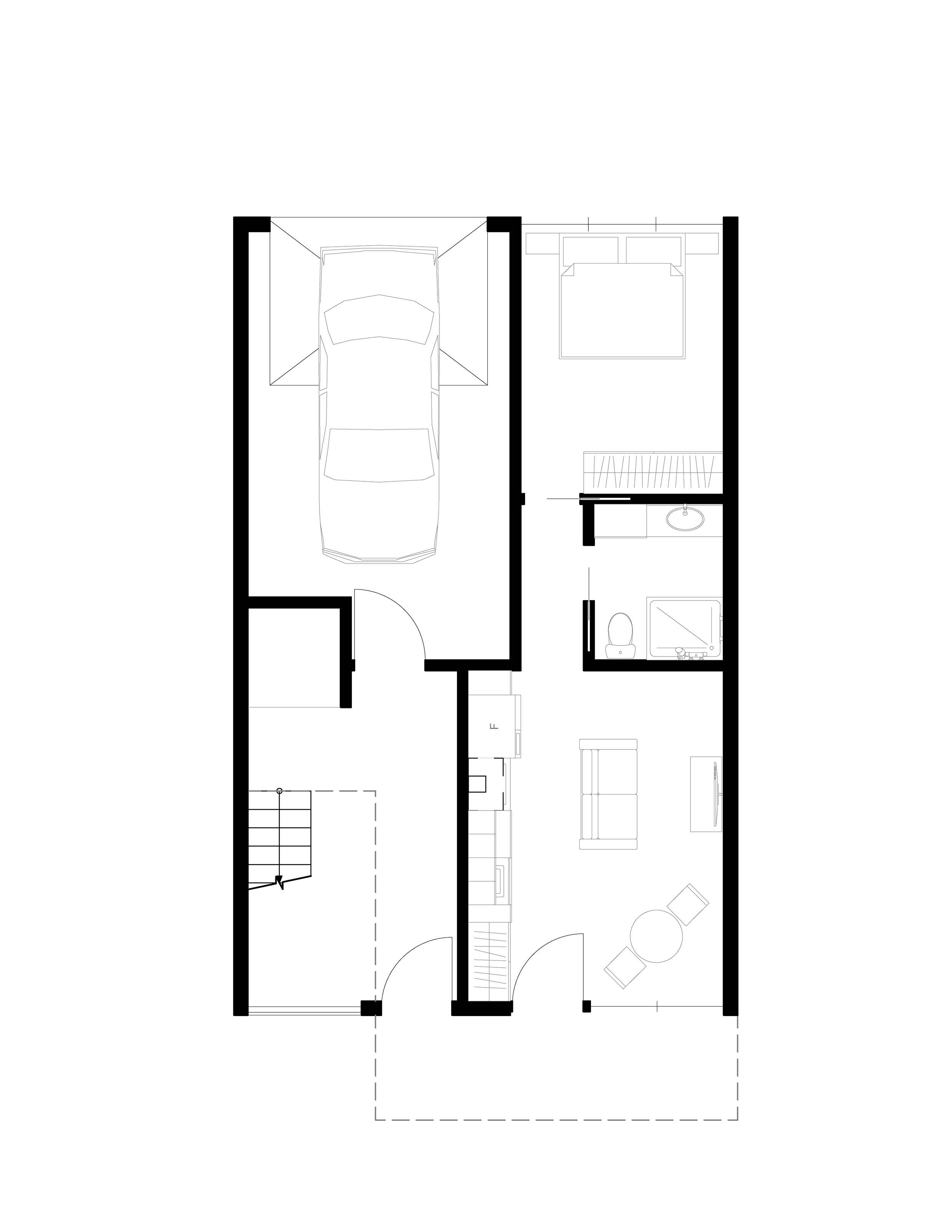

Option 4 - ADU
ADU
A compact, efficient ADU organized for one‑ or two‑person occupancy. The layout prioritizes sunlight, efficiency, and storage while keeping living areas public and the bedroom private.
Legend:
1 - Living 13-0 x 17-6
2 - Lounge 11-0 x 14-0
3 - Kitchen 11-0 x 13-6
4 - Dining 16-6 x 10-0
5 - Half Bathroom 4-6 x 4-6
6 - Exterior Balcony
7 - Stair Hall
8 - Elevator
